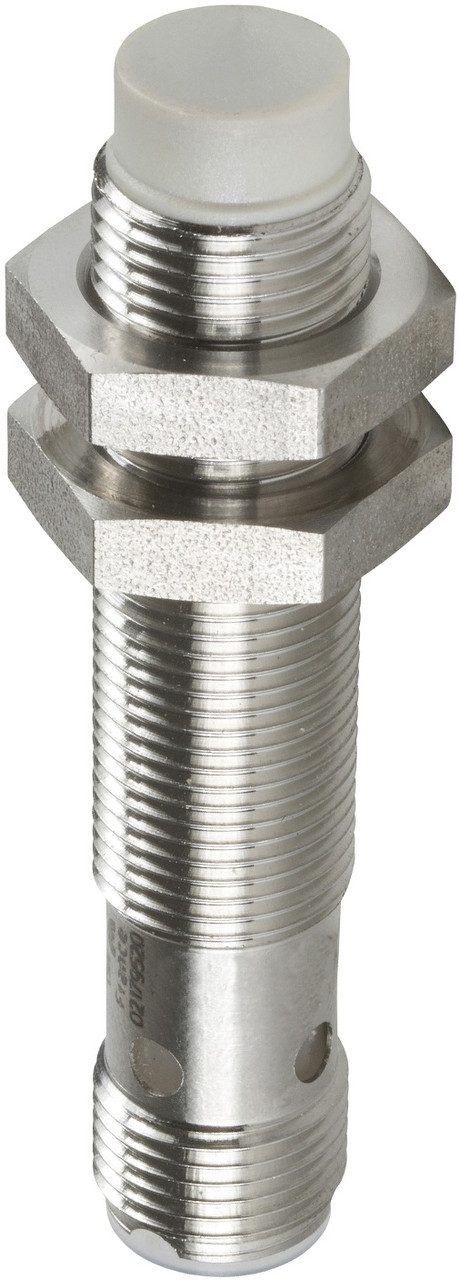

XS612B4NAM12 Schneider Electric Telemcanique Індуктивний датчик
499 ₴
- Під замовлення
- Код: XS612B4NAM12
Відправка з 07 лютого 2025
+380 (96) 442-28-96
- +380 (67) 560-00-79
Законом не передбачено повернення та обмін даного товару належної якості
У компанії підключені електронні платежі. Тепер ви можете купити будь-який товар не покидаючи сайту.
range of product | Telemecanique Inductive proximity sensors XS |
---|---|
series name | General purpose |
Sensor type | Inductive proximity sensor |
Device application | Mobile equipment |
sensor name | XS6 |
sensor design | Cylindrical M12 |
size | 66 mm |
body type | Fixed |
detector flush mounting acceptance | Non flush mountable |
Material | Metal |
type of output signal | Discrete |
Wiring technique | 3-wire |
[Sn] nominal sensing distance | 7 mm |
discrete output function | 1 NO |
output circuit type | DC |
discrete output type | NPN |
electrical connection | Male connector M12, 4 pins |
[Us] rated supply voltage | 12...48 V DC with reverse polarity protection |
switching capacity in mA | <= 200 mA DC with overload and short-circuit protection |
IP degree of protection | IP67 conforming to IEC 60529 IP69K conforming to DIN 40050 |
thread type | M12 x 1 |
---|---|
detection face | Frontal |
front material | PPS |
Enclosure material | Nickel plated brass |
sensing range | > 4...8 mm |
operating zone | 0…5.6 mm |
differential travel | 1...15% of Sr |
status LED | Output state: 1 LED (yellow) |
supply voltage limits | 10…58 V DC |
switching frequency | <= 2500 Hz DC |
maximum voltage drop | <2 V (closed) |
current consumption | <= 10 mA no-load |
maximum delay first up | 10 ms |
maximum delay response | 0.2 ms |
maximum delay recovery | 0.2 ms |
marking | CE |
threaded length | 42 mm |
Length | 66 mm |
Net weight | 0.02 kg |
Характеристики
Основні атрибути | |
---|---|
Виробник | Telemecanique |
Інформація для замовлення
- Ціна: 499 ₴
