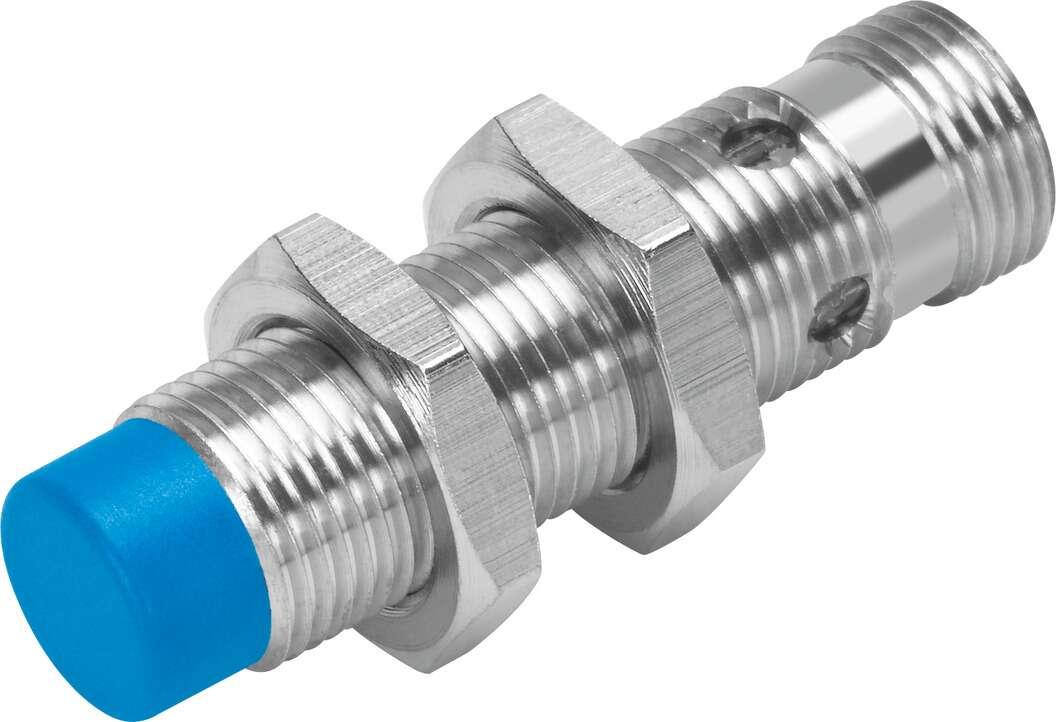

SIEN-M12NB-PS-S-L FESTO 150411 Датчик
899 ₴
- В наявності
- Код: SIEN-M12NB-PS-S-L
+380 (96) 442-28-96
- +380 (67) 560-00-79
Законом не передбачено повернення та обмін даного товару належної якості
У компанії підключені електронні платежі. Тепер ви можете купити будь-який товар не покидаючи сайту.
Conforms to standard
EN 60947-5-2
Symbol
00991701
Approval
RCM trademark
c UL us listed (OL) CE mark (see declaration of conformity) To EU EMC Directive Note on materials Copper/PTFE-free Rated operating distance 4 mm Assured operating distance 3.24 mm Reduction factors Aluminium = 0.5
Stainless steel St 18/8 = 0.9
Copper = 0.5
Brass = 0.6
Steel St 37 = 1.0 Ambient temperature -25 °C ... 70 °C Repetition accuracy with constant conditions 0.2 mm Switching output PNP Switching element function N/O contact Hysteresis ≤ 0.36 mm Max. switching frequency 2,000 Hz Max. output current 200 mA Voltage drop ≤ 2 V Inductive protective circuit Integrated Short circuit current rating Pulsed Operational voltage range DC 10 V ... 30 V Residual ripple ± 10% No-load supply current ≤ 10 mA Reverse polarity protection For all electrical connections Electrical connection 3-pin
M12x1
Plugs Size M12x1 Type of mounting Via lock nut Mounting type Not flush Product weight 25 g Material housing Brass
PBTP
Nickel-plated Switching status indication Yellow LED Ambient temperature with moving cable -5 °C ... 70 °C Degree of protection IP65
IP67 Corrosion resistance class CRC 2 - Moderate corrosion stress Additional information for sensor selection with standard sensing distance Electrical output PNP Selection of sensor design Standard
c UL us listed (OL) CE mark (see declaration of conformity) To EU EMC Directive Note on materials Copper/PTFE-free Rated operating distance 4 mm Assured operating distance 3.24 mm Reduction factors Aluminium = 0.5
Stainless steel St 18/8 = 0.9
Copper = 0.5
Brass = 0.6
Steel St 37 = 1.0 Ambient temperature -25 °C ... 70 °C Repetition accuracy with constant conditions 0.2 mm Switching output PNP Switching element function N/O contact Hysteresis ≤ 0.36 mm Max. switching frequency 2,000 Hz Max. output current 200 mA Voltage drop ≤ 2 V Inductive protective circuit Integrated Short circuit current rating Pulsed Operational voltage range DC 10 V ... 30 V Residual ripple ± 10% No-load supply current ≤ 10 mA Reverse polarity protection For all electrical connections Electrical connection 3-pin
M12x1
Plugs Size M12x1 Type of mounting Via lock nut Mounting type Not flush Product weight 25 g Material housing Brass
PBTP
Nickel-plated Switching status indication Yellow LED Ambient temperature with moving cable -5 °C ... 70 °C Degree of protection IP65
IP67 Corrosion resistance class CRC 2 - Moderate corrosion stress Additional information for sensor selection with standard sensing distance Electrical output PNP Selection of sensor design Standard
Характеристики
Основні атрибути | |
---|---|
Виробник | Festo |
Інформація для замовлення
- Ціна: 899 ₴
