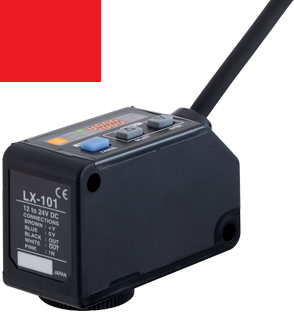

LX-101 PANASONIC Датчик

7 999 ₴

  • Під замовлення
  • Код: LX-101
clockВідправка з 29 жовтня 2024
LX-101 PANASONIC Датчик
LX-101 PANASONIC ДатчикПід замовлення
7 999 ₴
+380 (96) 442-28-96
  • +380 (67) 560-00-79
+380 (96) 442-28-96
  • +380 (67) 560-00-79
Законом не передбачено повернення та обмін даного товару належної якості
У компанії підключені електронні платежі. Тепер ви можете купити будь-який товар не покидаючи сайту.
Item Performance characteristics
CE Marking Directive Compliance EMC Directive, RoHS Directive
Sensing Range 10 ± 3 mm 0.394 ± 0.118 in
Spot Size 1 x 5 mm 0.039 x 0.197 in (at 10 mm 0.394 in setting distance)
Supply Voltage 12 to 24 V DC ± 10 % Ripple P-P 10 % or less
Current Consumption Normal mode: 750 mW or less(Current consumption 30 mA or less at 24 V supply voltage)
ECO mode: 600 mW or less(Current consumption 25 mA or less at 24 V supply voltage)
Output 1 (OUT) NPN open-collector transistor
- Maximum sink current: 50 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 1.5 V or less (at 50 mA sink current)
Output 1: Short-Circuit Protection Incorporated
Output 1: Output Operation Mark mode: Light-ON / Dark-ON (Auto-setting on teaching)
Color mode: Consistent-ON / Inconsistent-ON (Setting on teaching)
Output 2 (OUT) NPN open-collector transistor
- Maximum sink current: 50 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 1.5 V or less (at 50 mA sink current)
Output 2: Short-Circuit Protection Incorporated
Output 2: Output Operation Inverted operation of the output 1
Response Time Mark mode: 45 micro s or less
Color mode: 150 micro s or less
Teaching Input NPN non-contact input
- Signal condition: High... +5 V to +V, or open, Low... 0 to +2 V (source current: 0.5 mA or less)
- Input impedance: 10 kOhm approx.
Digital Display 4-digit red LED display
Sensitivity Setting Mark mode: 2-level teaching / Full-auto teaching
Color mode: 1-level teaching
Fine Sensitivity Adjustment Function Incorporated
Timer Function Incorporated with variable ON-delay / OFF-delay timer,
switchable either effective or ineffective
(Timer period: 1 to 500 ms, 9 levels variable)
Protection IP67 (IEC)
Ambient Temperature -10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed),
Storage: -20 to +70 ℃ -4 to +158 ℉
Ambient Humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient Illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage Withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Vibration Resistance 10 to 500 Hz frequency, 3.0 mm 0.118 in double amplitude (max. 20 G) in X, Y and Z directions for two hours each
Shock Resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directionsthree times each
Emitting Element Combined Red / Green / Blue LEDs (Peak emission wavelength: 640 nm 0.025 mil / 525 nm 0.021 mil / 470 nm 0.019 mil)
Material Enclosure: PBT
Display cover: Polycarbonate
Operation buttons: Silicone rubber
Lens: Glass
Lens holder: Aluminum
Cable 0.34 mm2 5-core cabtyre cable, 2 m 6.562 ft long
Cable Extension Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.
Weight (Typ.) Net weight: 120 g approx
Gross weight: 180 g approx
Характеристики
Основні атрибути
ВиробникPanasonic
