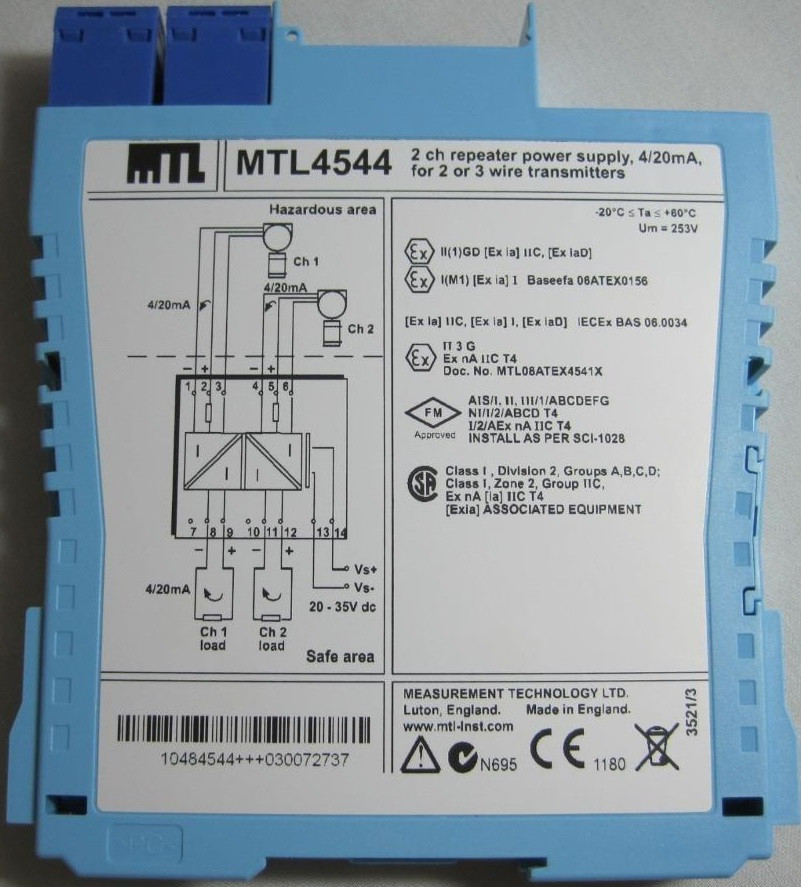

MTL4544 Модуль
7 999 ₴
- Під замовлення
- Код: MTL4544
- +380 (67) 560-00-79
-
Manufacturer : MTL Instrument
-
Product No. : MTL4544
-
Product Type : Repeater Power Supply
-
Number of channels : Two
-
Location of transmitter
-
Safe-area output
-
Signal range: 4 to 20mA
-
Under/over-range: 0 to 24mA
-
Safe-area load resistance (MTLx 544)
-
Safe-area load (MTLx544S)
-
Safe-area circuit output resistance: > 1M?
-
-
Safe-area circuit ripple : < 50µA peak-to-peak
-
Hazardous-area input
-
Transfer accuracy at 20°C : Better than 15µA
-
Temperature drift : < 0.8µA/°C
-
Response time : Settles to within 10% of final value within 50µs
-
Communications supported : HART (terminals 1 & 2 and 4 & 5 only)
-
LED indicator : Green: power indication
-
Maximum current consumption (with 20mA signals) : 96mA at 24V dc
-
Power dissipation within unit (with 20mA signals)
Основні атрибути | |
---|---|
Виробник | MTL Instruments |
- Ціна: 7 999 ₴
