SMTO-4U-PS-S-LED-24 FESTO Датчик положення 152742
3 999 ₴
- В наявності
- Код: SMTO-4U-PS-S-LED-24
- +380 (67) 560-00-79

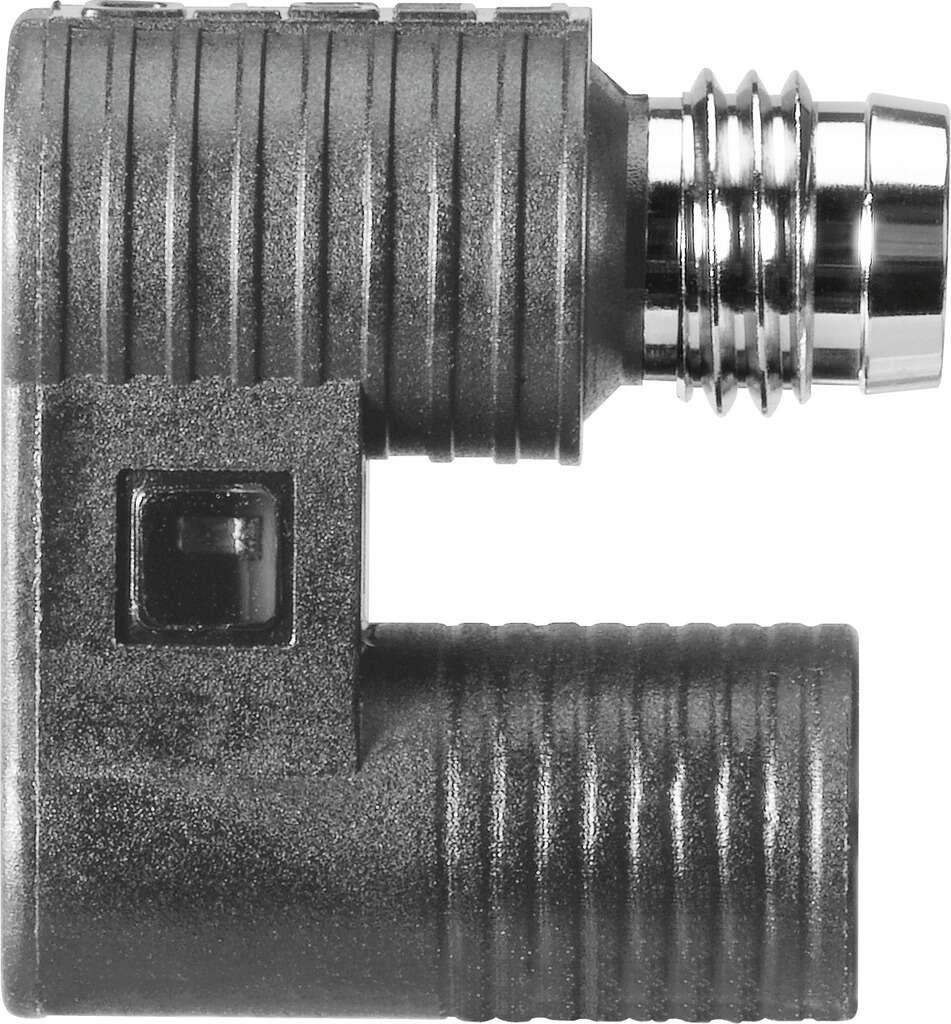

FESTO Proximity Sensor - SMTO-4U-PS-S-LED-24
Detecting the presence and proximity of an object is easily achieved with FESTO's SMTO proximity sensor. Through the use of light-emitting diodes that are integrated into the protective circuit, this sensor is able to detect without any physical contact. Forming part of the SMTO-4 range of attachable magneto-inductive cylinder switches this sensor has magneto-inductive measuring principles, u-shaped housing, LED switching status indication and a cable length of 2.5 m.
Features & Benefits
• Brought to you without a mounting kit
• RCM mark authorisation
• Free of copper and PTFE
• Magnetic inductive measuring principle
• -25 to 70°C ambient temperature
• PNP switch output
• The switching element function is a normally open contact
• Switching on-time is 0.5 ms and the switch-off time is 0.5 ms
• 200 mA maximum output current
• Pulsing short circuit strength
• Polarity protection for all electrical connections
• Plug, M8x1 and 3.pin electrical connections
• Axial connector exit direction
| Основні атрибути | |
|---|---|
| Виробник | Festo |
- Ціна: 3 999 ₴
