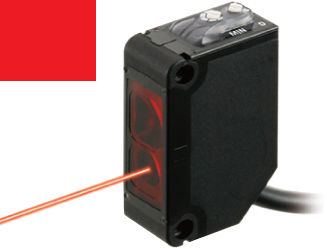

CX-423 Panasonic Датчик

1 499 ₴

  • Під замовлення
  • Код: CX-423
clockВідправка з 05 листопада 2024
CX-423 Panasonic Датчик
CX-423 Panasonic ДатчикПід замовлення
1 499 ₴
+380 (96) 442-28-96
  • +380 (67) 560-00-79
+380 (96) 442-28-96
  • +380 (67) 560-00-79
Законом не передбачено повернення та обмін даного товару належної якості
У компанії підключені електронні платежі. Тепер ви можете купити будь-який товар не покидаючи сайту.
Product Number CX-423
Part Number CX-423
Regulatory compliance EMC Directive, RoHS Directive
Sensing range 70 to 300 mm 2.756 to 11.811 in
(Note) The sensing range and hysteresis of the diffuse reflective type sensor are specified for white non-glossy paper (200 × 200 mm 7.874 × 7.874 in) as the object.
Sensing object Opaque, translucent or transparent object(Min. sensing object: Ø0.5 mm Ø0.020 in copper wire)
(Note) Make sure to confirm detection with an actual sensor before use.
Hysteresis 15 % or less of operation distance
(Note) The sensing range and hysteresis of the diffuse reflective type sensor are specified for white non-glossy paper (200 × 200 mm 7.874 × 7.874 in) as the object.
Repeatability(perpendicular to sensing axis) 0.5 mm 0.020 in or less
Supply voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current consumption 15 mA or less
Output NPN open-collector transistor
- Maximum sink current: 100 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current)
Output:Output operation Switchable either Light-ON or Dark-ON
Output:Short-circuit protection Incorporated
Response time 1 ms or less
Operation indicator Orange LED(lights up when the output is ON)
(incorporated on the receiver for thru-beam type)
Stability indicator Green LED(lights up under stable light received condition or stable dark condition)
(incorporated on the receiver for thru-beam type)
Power indicator -
Sensitivity adjuster Continuously variable adjuster(incorporated on the receiver for thru-beam type)
Automatic interference prevention function Incorporated(Two units of sensors can be mounted close together.)
Protection IP67 (IEC)
Ambient temperature - 25 to +55℃ -13 to +131℃ ℉ (No dew condensation or icing allowed ), Storage: -30 to +70℃ -22 to +158℃ ℉
Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance 10 to 500 Hz frequency, 1.5 mm 0.059 in amplitude (10 G max.) in X, Y and Z directions for two hours each
Shock resistance 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting element (modulated) Red LED
Emitting element (modulated):Peak emission wavelength 645 nm 0.025 mil
Material Enclosure: PBT (polybutylene terephthalate)
Lens: acrylic
Indicator cover: acrylic
Cable 0.2 mm23-core cabtyre cable, 2 m 6.562 ft long
Cable extension Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.
Weight Net weight: 50 g approx.
Gross weight: 60 g approx.
Характеристики
Основні атрибути
ВиробникPanasonic
