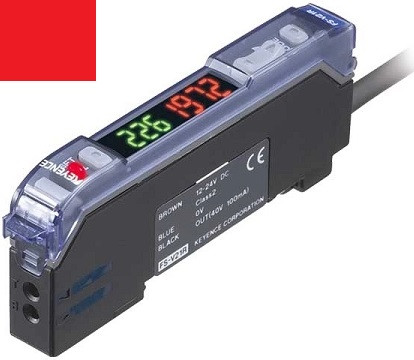

FS-V22 Keyence Датчик

Model

FS-V22

Type

Expansion unit: 1-output with cable, NPN

Light source

Red LED

Response time

250 µs (FINE) /500 µs (TURBO) /1 ms (SUPER TURBO) /4 ms (ULTRA TURBO) /500 µs (HIGH RESOLUTION) /50 µs (HIGH SPEED)

Shift function

Max. ±1,999 (variable)

Timer function

Mode

Timer OFF, OFF-delay timer, ON-delay timer, and one-shot timer, 1 to 500 ms

Control output

NPN open collector output at 40 V with 20 mA max. and a residual voltage of 1 V max.

Rating

Power voltage

12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less

Power consumption

Normal

S-APC mode OFF: 580 mW, S-APC mode turned ON or when the HIGH SPEED mode is selected.: 720 mW

ECO half

S-APC mode OFF: 480 mW, S-APC mode turned ON or when the HIGH SPEED mode is selected.: 600 mW

ECO all

S-APC mode OFF: 430 mW, S-APC mode turned ON or when the HIGH SPEED mode is selected.: 550 mW

Environmental resistance

Ambient light

Incandescent lamp: 20,000 lux max., Sunlight: 30,000 lux max.

Ambient temperature

-10 to +55 °C (No freezing)^*1

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions

Shock resistance

500 m/s², 3 times in each of the X, Y, and Z directions

Case material

Unit and cover are both polycarbonate made

Size

W 9 mm x L 70 mm x H 30 mm

Weight

Approx. 45 g (including 2-m cable)
