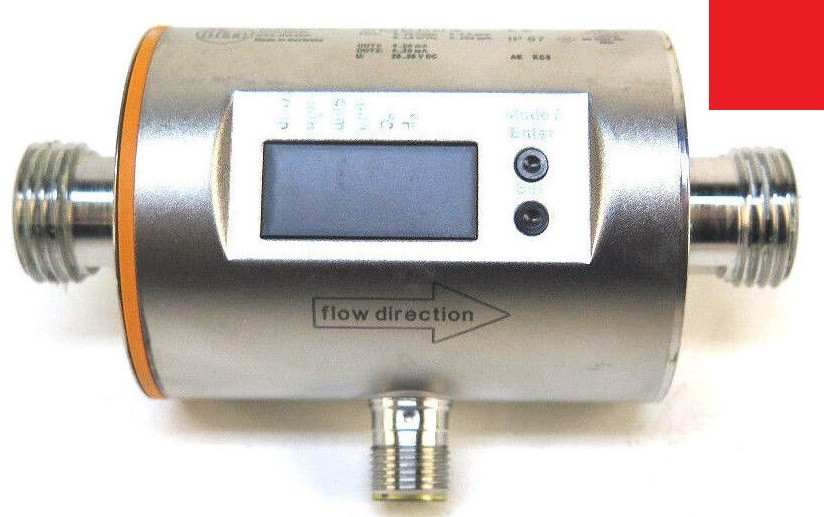

SM6004 IFM SMR12GGX50KG/US-100 Датчик Витрата
6 999 ₴
- Під замовлення
- Код: SM6004
Відправка з 25 грудня 2024
SM6004 IFM SMR12GGX50KG/US-100 Датчик ВитратаПід замовлення
6 999 ₴
+380 (96) 442-28-96
- +380 (67) 560-00-79
Законом не передбачено повернення та обмін даного товару належної якості
У компанії підключені електронні платежі. Тепер ви можете купити будь-який товар не покидаючи сайту.
| Number of inputs and outputs | Number of analogue outputs: 2 | ||
|---|---|---|---|
| Measuring range |
|
||
| Process connection | threaded connection G 1/2 DN15 flat seal |
Application
| Special feature | Gold-plated contacts | ||
|---|---|---|---|
| Application | for industrial applications | ||
| Installation | connection to pipe by means of an adapter | ||
| Media | conductive liquids; water; hydrous media | ||
| Note on media |
|
||
| Medium temperature [°C] | -10...70 | ||
| Pressure rating [bar] | 16 | ||
| Pressure rating [Mpa] | 1.6 | ||
| MAWP (for applications according to CRN) [bar] | 17.7 |
Electrical data
| Operating voltage [V] | 20...30 DC; (to SELV/PELV) |
|---|---|
| Current consumption [mA] | 120; (24 V) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 5 |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 2 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | analogue signal |
| Number of analogue outputs | 2 |
| Analogue current output [mA] | 4...20; (scalable) |
| Max. load [Ω] | 500 |
| Overload protection | yes |
Measuring/setting range
| Measuring range |
|
||
|---|---|---|---|
| Display range |
|
||
| Resolution |
|
||
| Analogue start point ASP |
|
||
| Analogue end point AEP |
|
||
| In steps of |
|
Temperature monitoring
| Measuring range [°C] | -20...80 |
|---|---|
| Resolution [°C] | 0.2 |
| Analogue start point [°C] | -20...60 |
| Analogue end point [°C] | 0...80 |
| In steps of [°C] | 0.2 |
Accuracy / deviations
Flow monitoring
| Accuracy (in the measuring range) | ± (2 % MW + 0,5 % MEW) |
|---|---|
| Repeatability | ± 0,2% MEW |
Temperature monitoring
| Accuracy [K] | ± 2,5 (Q > 1 l/min) |
|---|
Response times
Flow monitoring
| Response time [s] | 0.15; (dAP = 0, T19) |
|---|---|
| Damping process value dAP [s] | 0...3 |
Temperature monitoring
| Dynamic response T05 / T09 [s] | T09 = 20 (Q > 1 l/min) |
|---|
Operating conditions
| Ambient temperature [°C] | -10...60 |
|---|---|
| Storage temperature [°C] | -25...80 |
| Protection | IP 67 |
Характеристики
| Основні атрибути | |
|---|---|
| Виробник | IFM |
Інформація для замовлення
- Ціна: 6 999 ₴
