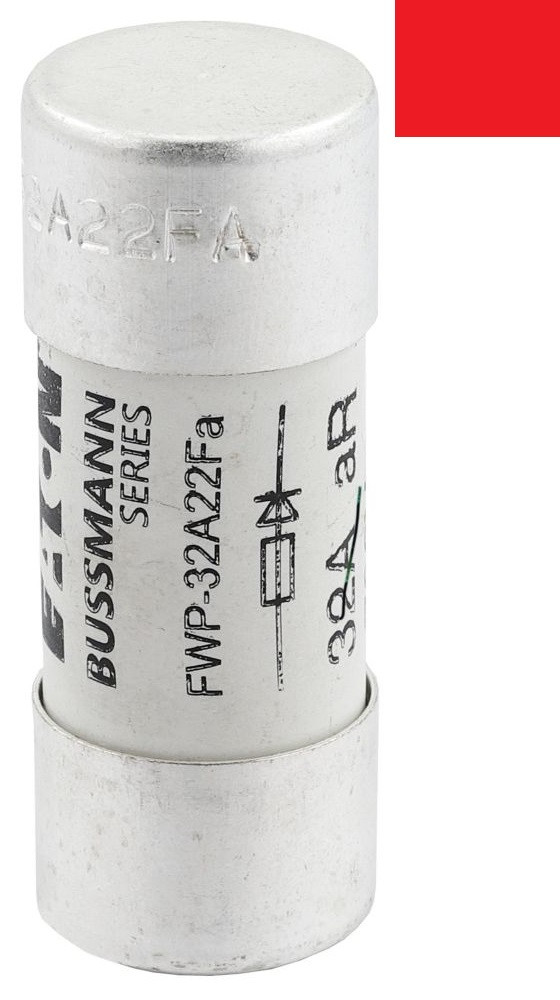

FWP-32A22Fa Eaton Bussmann Запобіжник

PRODUCT NAME

Eaton Bussmann series high speed cylindrical fuse

CATALOG NUMBER

FWP-32A22F

UPC

051712796545

EAN

5027590500623

PRODUCT LENGTH/DEPTH

58 mm

PRODUCT HEIGHT

23 mm

PRODUCT WIDTH

23 mm

PRODUCT WEIGHT

63.1 g

WARRANTY

Not Applicable

COMPLIANCES

CE Marked
RoHS Compliant

CERTIFICATIONS

CSA Certified
UL Recognized

PRODUCT SPECIFICATIONS

INTERRUPT RATING

200 kAIC

RELEASE CHARACTERISTIC

Other

AMPERAGE RATING

32 A

FREQUENCY RATING - MAX

62 Hz

FUSE TYPE

FWP-A22F

ACCESSORIES

JM70100 Fuse base

MINIMUM MELTING

53.5 I2t (A2 sec)

FUSE SIZE

22 x 58 mm

VOLTAGE RATING

700 V

FUSE INDICATOR

Other

CONSTRUCTION SIZE

22 mm x 58 mm

CLEARING (I2T)

780

COLOR

White

CONNECTION

Ferrule end x ferrule end

QUANTITY

10

MATERIAL

Ceramic

UTILIZATION CATEGORY

aR (accompanied semiconductor protection)

WATT LOSSES

8 W

TYPE

High speed fuse

FUSE SHAPE

Cylindrical

USED WITH

Finger safe holders/blocks and striker

BREAKING CAPACITY

200 kA

FREQUENCY RATING - MIN

45 Hz

CLASS

Class aR

PRE ARC (I2T)

55

APPLICATION

Semiconductor, DC Common bus, DC drives, Power converters/rectifiers

VOLTAGE TYPE

AC/DC

PACKAGING TYPE

Standard
