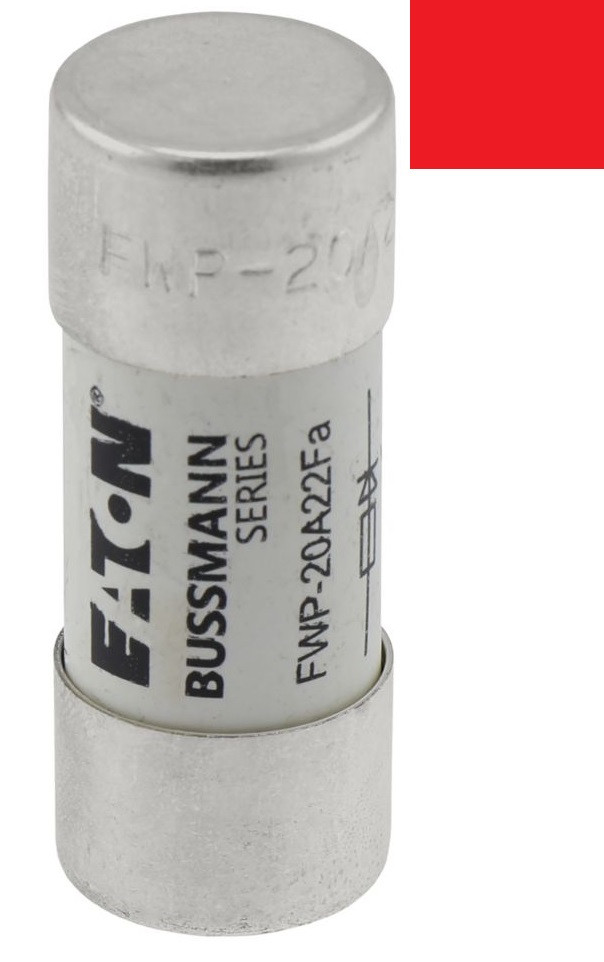

FWP-20A22Fa Eaton Bussmann Запобіжник

PRODUCT NAME

Eaton Bussmann series high speed cylindrical fuse

CATALOG NUMBER

FWP-20A22F

UPC

051712796521

EAN

5027590500319

PRODUCT LENGTH/DEPTH

56 mm

PRODUCT HEIGHT

23 mm

PRODUCT WIDTH

23 mm

PRODUCT WEIGHT

55.7 g

WARRANTY

Not Applicable

COMPLIANCES

CE Marked
RoHS Compliant

CERTIFICATIONS

UL Recognized
CSA Certified

PRODUCT SPECIFICATIONS

INTERRUPT RATING

200 kAIC

RELEASE CHARACTERISTIC

Other

AMPERAGE RATING

20 A

FREQUENCY RATING - MAX

62 Hz

FUSE TYPE

FWP-A22F

ACCESSORIES

JM70100 Fuse base

MINIMUM MELTING

19 I2t (A2 sec)

FUSE SIZE

22 x 58 mm

VOLTAGE RATING

700 V

FUSE INDICATOR

Other

CONSTRUCTION SIZE

22 mm x 58 mm

CLEARING (I2T)

330

COLOR

White

CONNECTION

Ferrule end x ferrule end

QUANTITY

10

MATERIAL

Ceramic

UTILIZATION CATEGORY

aR (accompanied semiconductor protection)

WATT LOSSES

5 W

TYPE

High speed fuse

FUSE SHAPE

Cylindrical

USED WITH

Finger safe holders/blocks and striker

BREAKING CAPACITY

200 kA

FREQUENCY RATING - MIN

45 Hz

CLASS

Class aR

PRE ARC (I2T)

23

APPLICATION

Semiconductor, DC Common bus, DC drives, Power converters/rectifiers

VOLTAGE TYPE

AC/DC

PACKAGING TYPE

Standard
