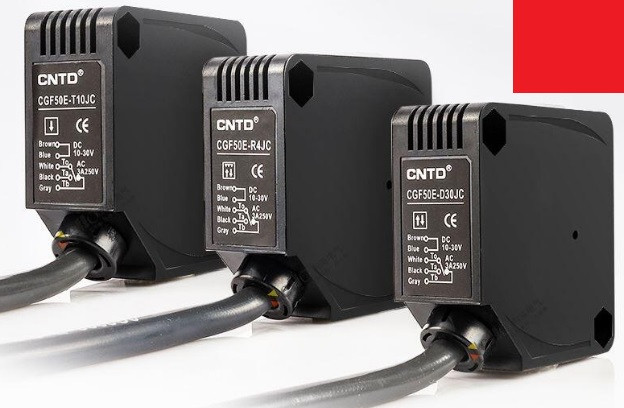

CGF50E-D30JC AC90-250V Датчик

Model

High-end type

CGF50-D30JC

CGF70-D50JC

Standard type

CGF50E-D30JC

CGF70E-D50JC

Sensing distance

30cm( Adjustable )

50cm(Adjustable)

Hysteresis

3-20%

Light source

LED (880nm) Infrared LED (880nm)

Consumption current

25mA

Power supply
(Operating voltage)

24-250VDC/AC( High-end type)
10-30VDC / 90-250VAC( Standard type)

Response time

< 8.2ms

Residual voltage

Max. 1V

Affection by Temp.

Max. ±10% for sensing distance at ambient temperature 20℃

Control output

3A

Insulation resistance

Min. 50MΩ(at 500VDC megger)

Dielectric strength

1500VAC 50/60Hz1 分钟 1500VAC 50/60Hz for 1minute

Vibration

1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours

Shock

500m/s2(approx. 50G) X, Y, Z directions for 3 times

Indicator

( LED) Operation indicator(red LED)

Ambient temperature

-15~+55℃ ( No icing)

Storage temperature

-15~+55℃ ( No icing)

Ambient humidity

35~95%RH ( No condensation)

Protection circuit

Surge protection circuit

Material

Case: ABS, Sensing surface: PMMA, Standard cable(Gray): Polyvinyl chloride(PVC), Oil resistant cable(Black): Oil resistant Polyvinyl chloride(PVC)

Cable

High-end type

φ6, 5P, 2m

/

(AWG22, Core diameter: 0.1mm, Number of cores: 22, Insulator diameter: φ1.25

/

Standard type

φ6, 5P, 1.5m

/

(AWG22, Core diameter: 0.1mm, Number of cores: 22, Insulator diameter: φ1.25

/

Protection

IP65

Model

High-end type

CGF50-D30NA CGF50-D30NB CGF50-D30NC CGF50-D30PA CGF50-D30PB CGF50-D30PC

CGF70-D50NA CGF70-D50NB CGF70-D50NC CGF70-D50PA CGF70-D50PB CGF70-D50PC

Standard type

CGF50E-D30NA CGF50E-D30NB CGF50E-D30NC CGF50E-D30PA CGF50E-D30PB CGF50E-D30PC

CGF70E-D50NA CGF70E-D50NB CGF70E-D50NC CGF70E-D50PA CGF70E-D50PB CGF70E-D50PC

Sensing distance

30cm( Adjustable)

50cm( Adjustable)

Hysteresis

3-20%

Light source

Infrared LED (880nm)

Consumption current

25mA

Powersupply
(Operating voltage)

10-30VDC

Response time

< 8.2ms

Residual voltage

Max.1V

Affection by Temp.

Max. ±10% for sensing distance at ambient temperature 20℃

Control output

Max. 200mA

Insulation resistance

Min. 50MΩ(at 500VDC megger)

Dielectric strength

1500VAC 50/60Hz for 1minute

Vibration

1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours

Shock

500m/s2(approx. 50G) X, Y, Z directions for 3 times

Indicator

Operation indicator(red LED)

Ambient temperature

-15~+55℃ ( No icing)

Storage temperature

-15~+55℃ ( No icing)

Ambient humidity

35~95%RH ( No condensation)

Protection circuit

Surge protection circuit, Overcurrent protection circuit

材质
Material

Case: ABS, Sensing surface: PMMA, Standard cable(Gray): Polyvinyl chloride(PVC), Oil resistant cable(Black): Oil resistant Polyvinyl chloride(PVC)

Cable

High-end type

φ6, 3P,4P, 2m

/

(AWG22, Core diameter: 0.1mm, Number of cores: 22, Insulator diameter: φ1.25

/

Standard type

φ6, 3P,4P, 1.5m

/

(AWG22, Core diameter: 0.1mm, Number of cores: 22, Insulator diameter: φ1.25

/

Protection

IP65

Model

High-end type

CGF50-R4JC

CGF70-R5JC

Standard type

CGF50E-R4JC

CGF70E-R5JC

Sensing distance

4m

5m

Hysteresis

3-20%

Light source

LED (880nm) Infrared LED (880nm)

Consumption current

25mA

Power supply
(Operating voltage)

24-250VDC/AC( High-end type)
10-30VDC / 90-250VAC( Standard type)

Response time

< 8.2ms

Reflector

TD08

Residual voltage

1V 以下 Max. 1V

Affection by Temp.

Max. ±10% for sensing distance at ambient temperature 20℃

Control output

3A

Insulation resistance

Min. 50MΩ(at 500VDC megger)

Dielectric strength

1500VAC 50/60Hz for 1minute

Vibration

1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours

Shock

500m/s2(approx. 50G) X, Y, Z directions for 3 times

Indicator

Operation indicator(red LED)

Ambient temperature

-15~+55℃ ( No icing)

Storage temperature

-15~+55℃ ( No icing)

Ambient humidity

35~95%RH ( No condensation)

Protection circuit

Surge protection circuit,

Material

Case: ABS, Sensing surface: PMMA, Standard cable(Gray): Polyvinyl chloride(PVC), Oil resistant cable(Black): Oil resistant Polyvinyl chloride(PVC)

Cable

High-end type

φ6, 5P, 2m

/

(AWG22, Core diameter: 0.1mm, Number of cores: 22, Insulator diameter: φ1.25

/

Standard type

φ6, 5P, 1.5m

/

(AWG22, Core diameter: 0.1mm, Number of cores: 22, Insulator diameter: φ1.25

/

Protection

IP65
