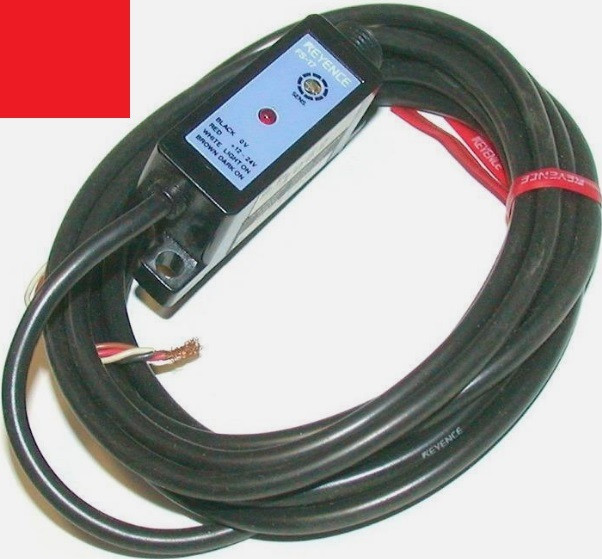

FS-17 KEYENCE Датчик
1 699 ₴
- Під замовлення
- Код: FS-17
- +380 (67) 560-00-79
Model |
FS-17 |
|||
Product name |
― |
|||
Cable length |
||||
Allowable bending radius |
||||
Light source |
Red LED |
|||
Sensitivity adjustment |
7-turn trimmer |
|||
Detecting distance (standard detection object) |
― |
|||
Spot diameter |
||||
Minimum detectable object |
||||
Response time |
Approx 0.5 ms |
|||
Hysteresis |
― |
|||
Operation mode |
Light-ON and Dark-ON dual output |
|||
Indicator lamp |
Operation when lit: red LED |
|||
Timer function |
― |
|||
External tuning input signal |
||||
Output |
NPN output |
|||
Control output |
NPN open-collector 100 mA max. (40 V max.), Residual voltage 1 V max. |
|||
Stability output |
― |
|||
Protection circuit |
||||
Laser emission stop input |
||||
Rating |
Power voltage |
12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less |
||
Current consumption |
35 mA or less |
|||
Environmental resistance |
Ambient light |
Incandescent lamp: 10,000 lux max., Sunlight: 20,000 lux max. |
||
Ambient temperature |
-10 to +55 °C (No freezing) |
|||
Relative humidity |
35 to 85 % RH |
|||
Material |
Polycarbonate |
Основні атрибути | |
---|---|
Виробник | Keyence |
- Ціна: 1 699 ₴
