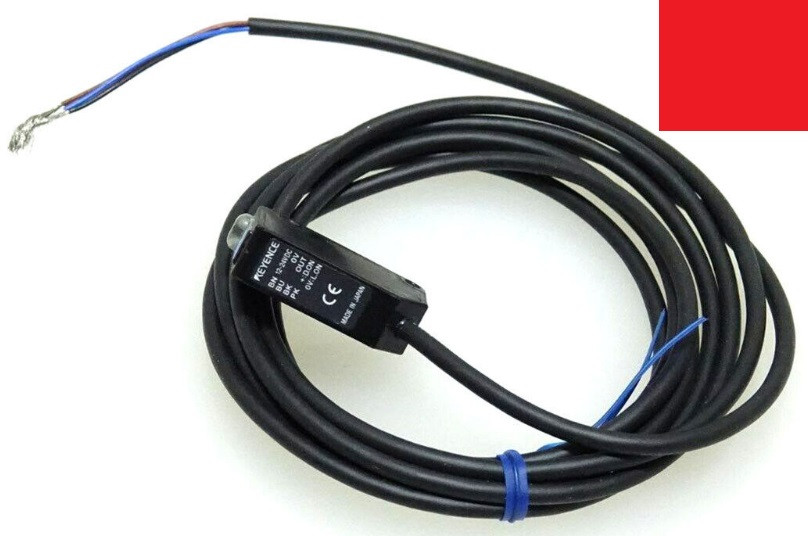

PZ-M11P KEYENCE Датчик
2 999 ₴
- Під замовлення
- Код: PZ-M11P
Відправка з 23 жовтня 2024
- +380 (67) 560-00-79
|
Model |
PZ-M11P |
|||
|
Type |
Intelligent reflective |
|||
|
Output |
PNP |
|||
|
Detecting distance |
5 to 100 mm (100 x 100 mmwhite mat paper)*1 |
|||
|
Setting distance |
30 to 100 mm (100 x 100 mmwhite mat paper) |
|||
|
Light source |
Red LED |
|||
|
Sensitivity adjustment |
1-turn trimmer (230°) |
|||
|
Response time |
1 ms max. |
|||
|
Operation mode |
LIGHT-ON/DARK-ON (switch-selectable) |
|||
|
Indicator lamp |
― |
|||
|
Control output |
100 mA (24 V) max., Residual voltage: 1 V max. |
|||
|
Digital monitor |
― |
|||
|
Protection circuit |
Reversed polarity, overcurrent protection, surge absorber |
|||
|
Rating |
Power voltage |
12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less |
||
|
Power consumption |
30 mA max. |
|||
|
Environmental resistance |
Enclosure rating |
IP67 |
||
|
Ambient light |
Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max. |
|||
|
Ambient temperature |
-20 to +55 °C (No freezing) |
|||
|
Relative humidity |
35 to 85 % RH (No condensation) |
|||
|
Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions |
|||
|
Shock resistance |
1,000 m/s2, 6 times in each of the X, Y, and Z directions |
|||
|
Case material |
Glass-fibre reinforced plastic |
|||
|
Accessories |
― |
|||
|
Weight |
Approx. 55 g (including 2-m cable) |
|||
| Основні атрибути | |
|---|---|
| Виробник | Keyence |
- Ціна: 2 999 ₴
