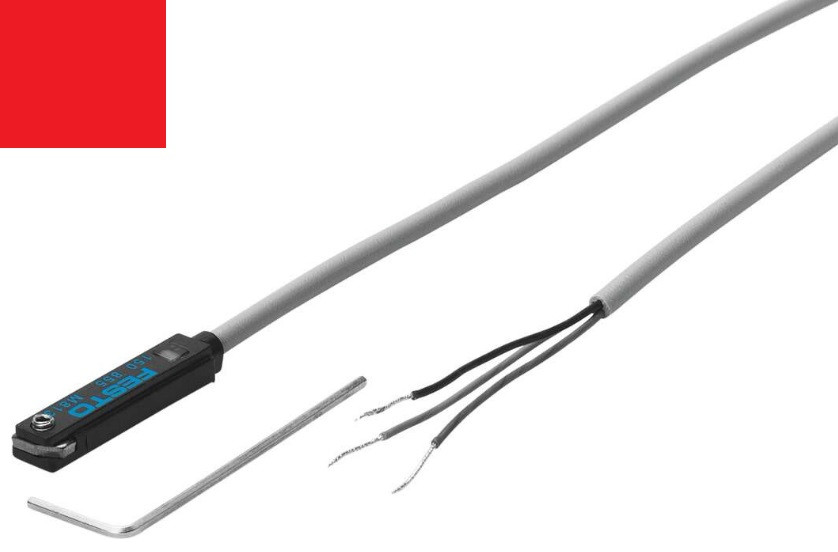

SME-8-K5-LED-24 FESTO Датчик 175404
699 ₴
- В наявності
- Код: SME-8-K5-LED-24
+380 (96) 442-28-96
- +380 (67) 560-00-79
Законом не передбачено повернення та обмін даного товару належної якості
У компанії підключені електронні платежі. Тепер ви можете купити будь-який товар не покидаючи сайту.
- Designfor T-slot
- Conforms to standardEN 60947-5-2
- Symbol00991620
- CertificationRCM compliance mark
- CE marking (see declaration of conformity)As per EU EMC directive As per EU RoHS directive
- UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
- Note on materialsRoHS-compliant
- Application noteSupport / actuator-sensor overview "The right sensor for the actuator"
- Measured variablePosition
- Measuring principleMagnetic reed
- Ambient temperature-40 °C ... 70 °C
- Repetition accuracy0.2 mm
- Switching outputContact-based, bipolar
- Switching element functionN/O contact
- On time≤0.5 ms
- Switch-off time0.03 ms
- Max. switching frequency800 Hz
- Max. output current500 mA
- Min. switching capacity AC10 VA
- Max. switching capacity DC10 W
- Voltage drop0 V
- Inductive protective circuitAdapted to MZ, MY and ME coils
- Short-circuit protectionno
- Overload protectionNot available
- Operating voltage range AC12 V ... 30 V
- DC operating voltage range12 V ... 30 V
- Reverse polarity protectionno
- Electrical connection 1, connection typeCable
- Electrical connection 1, connection technologyOpen end
- Electrical connection 1, number of pins/wires3
- Connection outlet orientationLongitudinal
- Cable length5 m
- Color cable sheathGray
- Material of cable sheathTPE-U(PUR)
- Type of mountingClamped in T slot Can be inserted in slot lengthwise
- Tightening torque0.2 Nm
- Mounting positionAny
- Product weight60 g
- Housing colourBlack
- Housing materialEpoxy resin PC PET High-alloy stainless steel
- Switching status indicationLED yellow
- Ambient temperature with flexible cable installation-5 °C ... 70 °C
- Degree of protectionIP65 IP67
- Insulation voltage50 V
- Surge resistance0.8 kV
- LABS (PWIS) conformityVDMA24364-B2-L
- Contamination level3
Характеристики
Основні атрибути | |
---|---|
Виробник | Festo |
