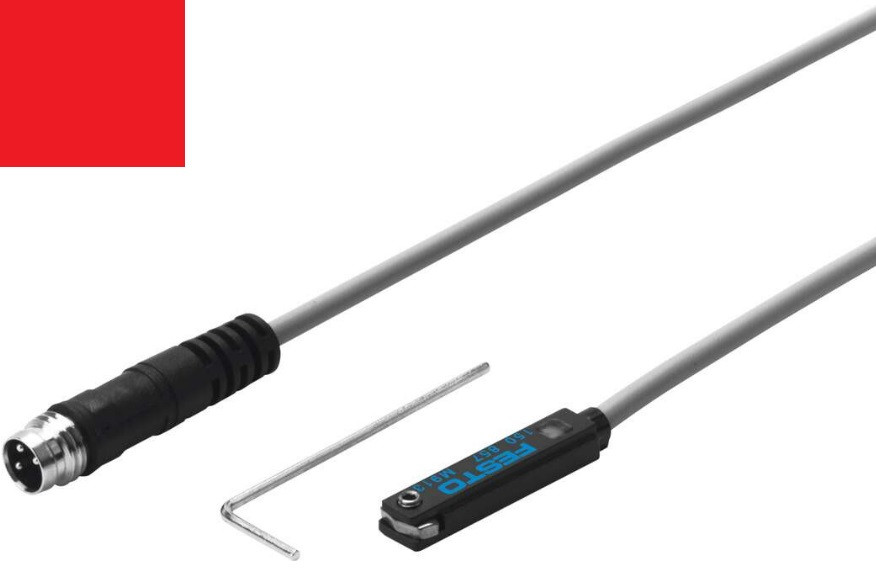

SME-8-S-LED-24 FESTO Датчик 150857
599 ₴
- Під замовлення
- Код: SME-8-S-LED-24
Відправка з 03 червня 2024
SME-8-S-LED-24 FESTO Датчик 150857Під замовлення
599 ₴
+380 (96) 442-28-96
- +380 (67) 560-00-79
Законом не передбачено повернення та обмін даного товару належної якості
У компанії підключені електронні платежі. Тепер ви можете купити будь-який товар не покидаючи сайту.
- Designfor T-slot
- Conforms to standardEN 60947-5-2
- Symbol00991148
- CertificationRCM compliance mark
- CE marking (see declaration of conformity)As per EU EMC directive As per EU RoHS directive
- UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
- Note on materialsRoHS-compliant
- Application noteSupport / actuator-sensor overview "The right sensor for the actuator"
- Measured variablePosition
- Measuring principleMagnetic reed
- Ambient temperature-40 °C ... 70 °C
- Repetition accuracy0.2 mm
- Switching outputContact-based, bipolar
- Switching element functionN/O contact
- Reproducibility of switching value+/- 0.1 mm
- On time0.5 ms
- Switch-off time0.03 ms
- Max. switching frequency800 Hz
- Max. output current500 mA
- Min. switching capacity AC10 VA
- Max. switching capacity DC10 W
- Inductive protective circuitAdapted to MZ, MY and ME coils
- Short-circuit protectionno
- Overload protectionNot available
- Operating voltage range AC12 V ... 30 V
- DC operating voltage range12 V ... 30 V
- Reverse polarity protectionno
- Electrical connection 1, connection typePlug
- Electrical connection 1, connection technologyM8x1 A-coded as per EN 61076-2-104
- Electrical connection 1, number of pins/wires3
- Electrical connection for input 1, connection pattern00991155
- Connection outlet orientationLongitudinal
- Material of pin contactsBrass Nickel-plated
- Material of plug housingTPE-U(PU)
- Cable length0.3 m
- Color cable sheathGray
- Material of cable sheathTPE-U(PUR)
- Type of mountingClamped in T slot Can be inserted in slot lengthwise
- Tightening torque0.2 Nm
- Mounting positionAny
- Product weight8 g
- Housing colourBlack
- Housing materialEpoxy resin PC PET High-alloy stainless steel
- Switching status indicationLED yellow
- Ambient temperature with flexible cable installation-5 °C ... 70 °C
- Degree of protectionIP67
- Insulation voltage50 V
- Surge resistance0.8 kV
- LABS (PWIS) conformityVDMA24364-B2-L
- Contamination level3
Характеристики
| Основні атрибути | |
|---|---|
| Виробник | Festo |
Інформація для замовлення
- Ціна: 599 ₴
