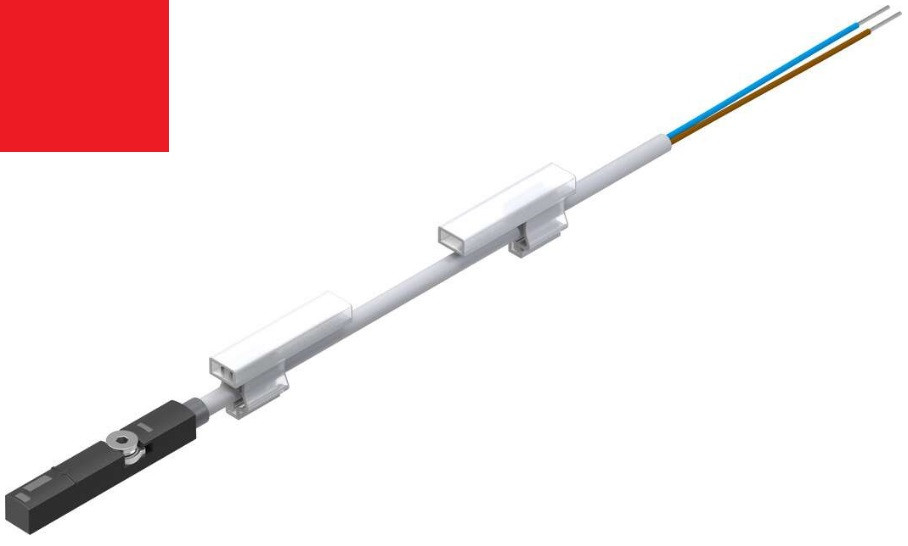

SME-8M-ZS-24V-K-2.5-OE FESTO Датчик 543872
699 ₴
- В наявності
- Код: SME-8M-ZS-24V-K-2.5-OE
SME-8M-ZS-24V-K-2.5-OE FESTO Датчик 543872В наявності
699 ₴
+380 (96) 442-28-96
- +380 (67) 560-00-79
Законом не передбачено повернення та обмін даного товару належної якості
У компанії підключені електронні платежі. Тепер ви можете купити будь-який товар не покидаючи сайту.
- Symbol00991624
- CertificationRCM compliance mark c UL us - Listed (OL)
- CE marking (see declaration of conformity)As per EU EMC directive As per EU RoHS directive
- UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
- Special featuresOil-resistant
- Note on materialsRoHS-compliant
- Measuring principleMagnetic reed
- Ambient temperature-40 °C ... 70 °C
- Switching outputContact-based, bipolar
- Switching element functionN/O contact
- Max. output current80 mA
- Max. output current in mounting kits80 mA
- Min. switching capacity AC2.4 VA
- Max. switching capacity DC2.4 W
- Max. switching capacity DC in mounting kits2.4 W
- Max. switching capacity AC in mounting kits2.4 VA
- Voltage drop4.8 V
- Short-circuit protectionno
- Overload protectionNot available
- Operating voltage range AC5 V ... 30 V
- DC operating voltage range5 V ... 30 V
- Reverse polarity protectionno
- Electrical connection 1, connection typeCable
- Electrical connection 1, connection technologyOpen end
- Electrical connection 1, number of pins/wires2
- Connection outlet orientationLongitudinal
- Connector cable test conditionsFlexural strength: as per Festo standard Test conditions on request Energy chain > 5 million cycles, bending radius 75 mm
- Cable length2.5 m
- Cable characteristicStandard/suitable for energy chains
- Material of cable sheathTPE-U(PUR)
- Type of mountingScrewed tightly Can be inserted in slot from above
- Product weight26.3 g
- Housing materialPA High-alloy stainless steel
- Switching status indicationLED yellow
- Ambient temperature with flexible cable installation-5 °C ... 70 °C
- Degree of protectionIP65 IP68
- LABS (PWIS) conformityVDMA24364-B2-L
Характеристики
| Основні атрибути | |
|---|---|
| Виробник | Festo |
Інформація для замовлення
- Ціна: 699 ₴
