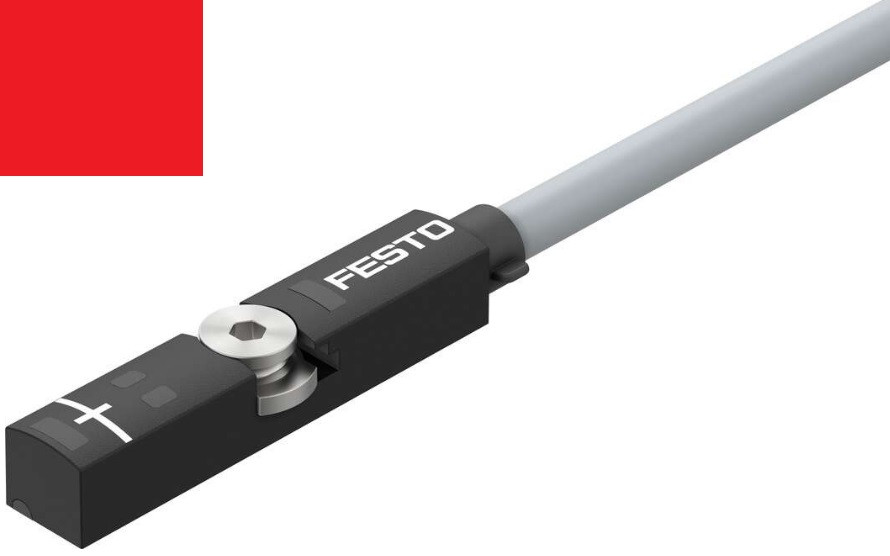

SMT-8M-A-PS-24V-E-5.0-OE 574336 FESTO Датчик
799 ₴
- Під замовлення
- Код: SMT-8M-A-PS-24V-E-5.0-OE
Відправка з 03 червня 2024
SMT-8M-A-PS-24V-E-5.0-OE 574336 FESTO ДатчикПід замовлення
799 ₴
+380 (96) 442-28-96
- +380 (67) 560-00-79
Законом не передбачено повернення та обмін даного товару належної якості
У компанії підключені електронні платежі. Тепер ви можете купити будь-який товар не покидаючи сайту.
- Designfor T-slot
- Based on normEN 60947-5-2
- Symbol00991152
- CertificationRCM compliance mark c UL us - Listed (OL)
- CE marking (see declaration of conformity)As per EU EMC directive As per EU RoHS directive
- UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
- KC charactersKC EMC
- Certificate issuing authorityUL E232949
- Special featuresOil-resistant
- Note on materialsRoHS-compliant Halogen-free
- Application notehttps://www.festo.com/Drive-Sensor-Overview
- Measured variablePosition
- Measuring principleMagneto-resistive
- Ambient temperature-40 °C ... 85 °C
- Repetition accuracy0.2 mm
- Switching outputPNP
- Switching element functionN/O contact
- On time≤1.3 ms
- Switch-off time≤7.3 ms
- Max. switching frequency130 Hz
- Max. output current100 mA
- Max. output current in mounting kits100 mA
- Max. switching capacity DC2.8 W
- Max. switching capacity DC in mounting kits2.8 W
- Voltage drop<1.5 V
- Short-circuit protectionyes
- Overload protectionAvailable
- Rated operating voltage DC24 V
- DC operating voltage range5 V ... 30 V
- Reverse polarity protectionfor all electrical connections
- Electrical connection 1, connection typeCable
- Electrical connection 1, connection technologyOpen end
- Electrical connection 1, number of pins/wires3
- Connection outlet orientationLongitudinal
- Connector cable test conditionsFlexural strength: as per Festo standard Test conditions on request Torsional resistance: > 300 000 cycles, ±270°/0.1 m Energy chain > 5 million cycles, bending radius 28 mm
- Cable length5 m
- Cable characteristicSuitable for energy chains/robot applications
- Color cable sheathGray
- Material of cable sheathTPE-U(PUR)
- Type of mountingScrewed tightly Can be inserted in slot from above
- Max. tightening torque0.6 Nm
- Mounting positionAny
- Product weight57.1 g
- Housing colourBlack
- Housing materialPA-reinforced High-alloy stainless steel
- Switching status indicationLED yellow
- Function reserve indicationLED orange
- Ambient temperature with flexible cable installation-20 °C ... 85 °C
- Degree of protectionIP65 IP68 IP69K
Характеристики
| Основні атрибути | |
|---|---|
| Виробник | Festo |
Інформація для замовлення
- Ціна: 799 ₴
