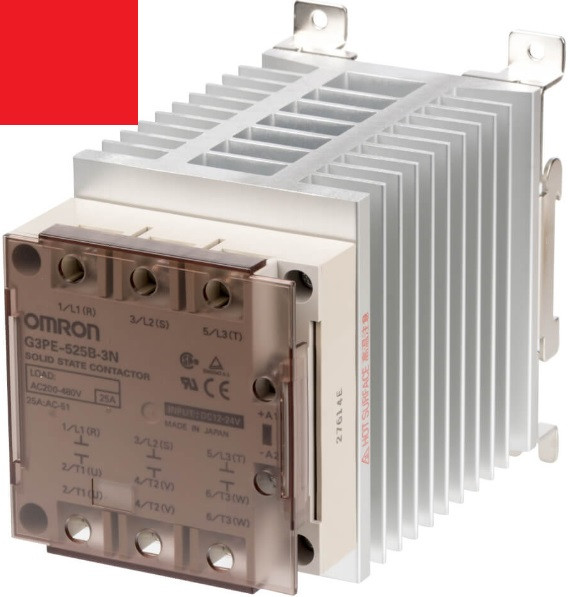

G3PE-525B-3N Omron Контактор твердотільний

9 999 ₴

  • Під замовлення
  • Код: G3PE-525B-3N
clockВідправка з 10 лютого 2025
G3PE-525B-3N Omron Контактор твердотільний
G3PE-525B-3N Omron Контактор твердотільнийПід замовлення
9 999 ₴
+380 (96) 442-28-96
  • +380 (67) 560-00-79
+380 (96) 442-28-96
  • +380 (67) 560-00-79
Законом не передбачено повернення та обмін даного товару належної якості
У компанії підключені електронні платежі. Тепер ви можете купити будь-який товар не покидаючи сайту.
Product classification For 3-phase Heater
Number of phases Three-phase
Number of elements 3
Isolation method Phototriac
Zero cross function Equipped
Operating indicator Equipped (Yellow)
Terminal structure Screw terminal
Mounting DIN track mounting
Input Rated voltage 12 to 24 VDC
Operating voltage range 9.6 to 30 VDC
Input current 10 mA max. (at 24 VDC)
Operate voltage 9.6 V max.DC
Release voltage 1 V min.DC
Output Rated load voltage 200 to 480 VAC
Load voltage range 180 to 528 VAC
Minimum load current 0.5 A
Load current 25 A (at 40 ℃)
Inrush current resistivity 220 A (60 Hz 1 cycle)
Permissible I2**t 260 A2s
Applicable load Load carrying capacity 20.7 kW (at 480 VAC)
Performance
Operate time 1/2 cycle of load power source + 1 ms max.
Release time 1/2 cycle of load power source + 1 ms max.
Output ON voltage drop 1.8 V max. (RMS)
Leakage current 20 mA max. (at 480 VAC)
Insulation resistance 100 MΩ min. (at 500 VDC)
Dielectric strength 2500 VAC 50/60 Hz 1 min
Vibration resistance 10 to 55 to 10 Hz, 0.175 mm single amplitude (0.35 mm double amplitude)
Shock resistance 294 m/s2 (98 m/s2 with reverse mounting)
Ambient temperature (Operating) -30 to 80 ℃ (with no freezing or condensation)
Ambient temperature (Storage) -30 to 100 ℃ (with no freezing or condensation)
Ambient humidity (Operating) 45 to 85 %
Weight Approx. 1450 g
Характеристики
Основні атрибути
ВиробникOmron
