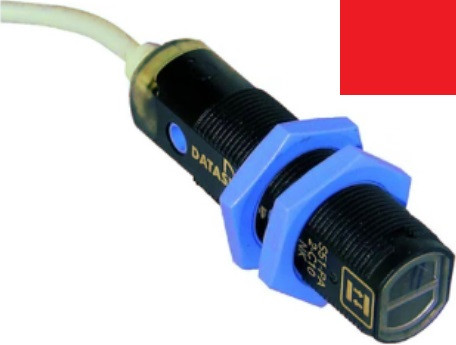

S5N-PA-2-C01-PP Datalogic Датчик 952001051
1 999 ₴
- В наявності
- Код: S5N-PA-2-C01-PP
S5N-PA-2-C01-PP Datalogic Датчик 952001051В наявності
1 999 ₴
+380 (96) 442-28-96
- +380 (67) 560-00-79
Законом не передбачено повернення та обмін даного товару належної якості
У компанії підключені електронні платежі. Тепер ви можете купити будь-який товар не покидаючи сайту.
etection properties
Application
Outputs
Electrical data
Mechanical data
Test/Approvals
Accessories
Generical Data
| Nominal sensing distance | 700mm | |
| Sensitivity adjustment | Trimmer | |
| Function Principle | Diffuse beam | |
| Notes | white target Kodak 90% 100 x 100mm | |
| Description | Tubular M18 - axial optic | |
| Optic position | Radial 90° | |
| Functions | Diffuse beam | |
| Output type | PNP NO+NC | |
| Output Function | NO+NC | |
| Switching frequency | 1kHz | |
| Response time | 500µs | |
| Operating Voltage | 10…30VDC | |
| No-Load supply current | ≤ 35 mA | |
| Load current | ≤100mA | |
| Leakage current | ≤10μA | |
| Output voltage drop | ≤2V@Iload=100mA | |
| LED indicators | yellow OUTPUT LED, green STABILITY LED | |
| Short-circuit protection | YES | |
| Reverse Polarity Protection | Yes | |
| Emission | LED Infrared | |
| Interference to external light | according to EN 60947-5-2 : 2020 | |
| Impulsive Overvoltage Protection | Yes | |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing | |
| Contact resistance | 500 Vac 1 min., between electronics and housing | |
| Dimensions | Ø18x67 | |
| Housing Material | Plastic - PBT / PMMA | |
| Connections | 2m cable | |
| Active Head Material | PMMA | |
| Storage temperature | - 25°C…+70°C | |
| Material | Plastic - PBT / PC | |
| Diameter/Dimension | M18 | |
| Approvals | CE cULus | |
| EMC compatibility | EN 60947-5-2 | |
| Shocks and vibrations | 0.5 mm amplitude, 10... 55 Hz frequency, for every axis (EN60068-2-6) | |
| Supplied Accessories | nuts M18 x 1 | |
| Dimensions | M18x67 | |
| Operating Temperature | - 25°C…+ 55°C (Without freeze) | |
| Mechanical Protection | IP67 | |
Характеристики
| Основні атрибути | |
|---|---|
| Виробник | Datalogic |
Інформація для замовлення
- Ціна: 1 999 ₴
