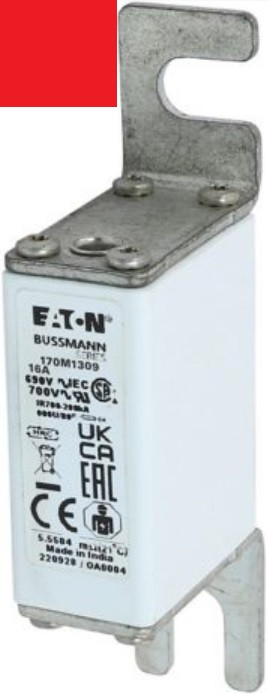

170M1309 Eaton Bussmann Запобіжник
1 699 ₴
- Під замовлення
- Код: 170M1309
- +380 (67) 560-00-79
PRODUCT NAME
Eaton Bussmann series high speed square body fuse
CATALOG NUMBER
170M1309
MODEL CODE
FUSE 16A 690V 000U/80 GR UC
UPC
051712216456
EAN
5027590440707
PRODUCT LENGTH/DEPTH
100 mm
PRODUCT HEIGHT
40 mm
PRODUCT WIDTH
21 mm
PRODUCT WEIGHT
0.295 g
WARRANTY
Not Applicable
COMPLIANCES
CE Marked
RoHS Compliant
CERTIFICATIONS
IEC Rated
UL Recognized
PRODUCT SPECIFICATIONS
TYPE
Fuse
APPLICATION
Semiconductor, DC Common bus, DC drives, power converters/rectifiers
AMPERAGE RATING
16 A
BREAKING CAPACITY
200 kA
FUSE INDICATOR
None
INSULATED METAL GRIPPING LUGS (IMGL)
No
UTILIZATION CATEGORY
gR (general purpose semiconductor protection)
VOLTAGE TYPE
AC
FUSE SIZE
000
RATED VOLTAGE AC
690 V
CENTER-TO-CENTER DISTANCE OF CONNECTIONS
76.7 mm
CURRENT TYPE
AC
MOUNTING DIMENSION
M8
CLASS
Class gR
CLEARING (I2T)
48 at 660 V
WATT LOSSES
5.5 W
FUSE SHAPE
Square body, slotted offset bolted tags
PRE ARC (I2T)
7.2
COLOR
None
INTERRUPT RATING
200 kAIC
CONNECTION
Blade end x blade end
CONSTRUCTION SIZE
000
PACKAGING TYPE
Standard
VOLTAGE RATING
690 V (IEC), 700 V (UL)
Основні атрибути | |
---|---|
Виробник | Eaton |
- Ціна: 1 699 ₴
