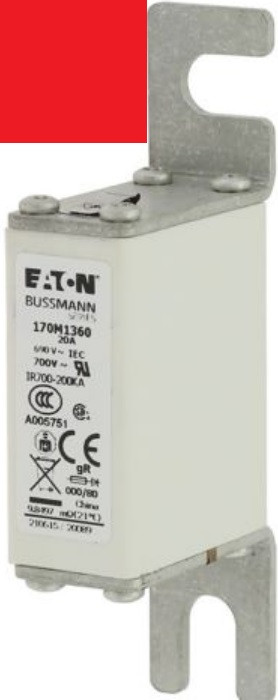

170M1360 Eaton Bussmann Запобіжник
1 199 ₴
- Під замовлення
- Код: 170M1360
- +380 (67) 560-00-79
RODUCT NAME
Eaton Bussmann series high speed square body fuse
CATALOG NUMBER
170M1360
MODEL CODE
FUSE 20A 690V 000/80 GR UC
UPC
051712216616
EAN
5027590440806
PRODUCT LENGTH/DEPTH
105 mm
PRODUCT HEIGHT
46 mm
PRODUCT WIDTH
300 mm
PRODUCT WEIGHT
145.1 g
WARRANTY
Not Applicable
COMPLIANCES
CE Marked
RoHS Compliant
CERTIFICATIONS
IEC Rated
UL Recognized
PRODUCT SPECIFICATIONS
TYPE
Fuse
APPLICATION
Semiconductor, DC Common bus, DC drives, power converters/rectifiers
AMPERAGE RATING
20 A
BREAKING CAPACITY
200 kA
FUSE INDICATOR
Top fuse status indicator
INSULATED METAL GRIPPING LUGS (IMGL)
No
UTILIZATION CATEGORY
gR (general purpose semiconductor protection)
VOLTAGE TYPE
AC
FUSE SIZE
000
RATED VOLTAGE AC
690 V
CENTER-TO-CENTER DISTANCE OF CONNECTIONS
76.7 mm
CURRENT TYPE
AC
MOUNTING DIMENSION
M8
CLASS
Class gR
CLEARING (I2T)
78 at 660 V
WATT LOSSES
7 W
FUSE SHAPE
Square body, slotted offset bolted tags
PRE ARC (I2T)
11.5
COLOR
None
INTERRUPT RATING
200 kAIC
CONNECTION
Blade end x blade end
CONSTRUCTION SIZE
000
PACKAGING TYPE
Standard
VOLTAGE RATING
690 V (IEC), 700 V (UL)
Основні атрибути | |
---|---|
Виробник | Eaton |
- Ціна: 1 199 ₴
